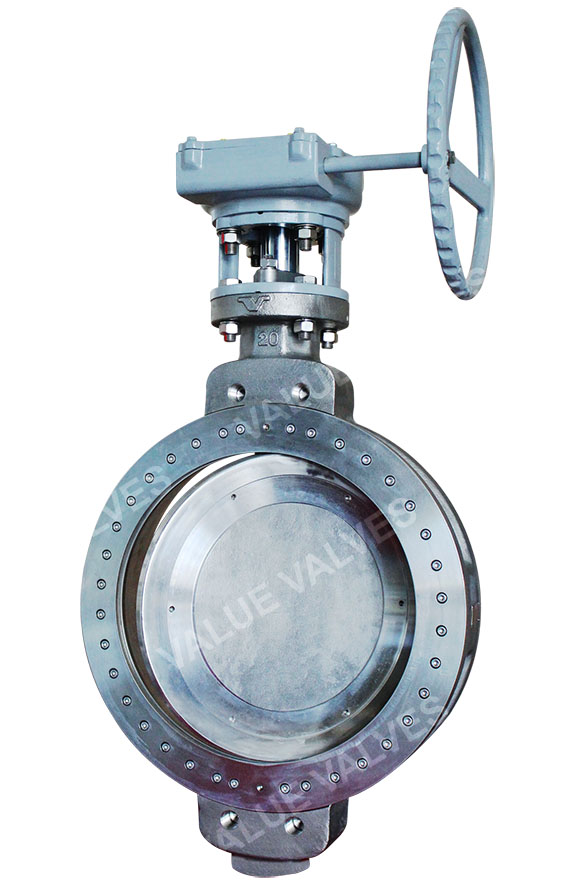

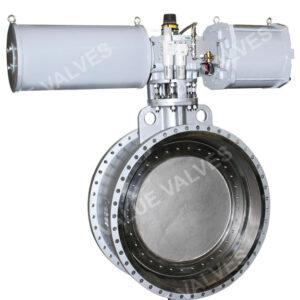

VF-8 Series High Performance Triple-Offset Butterfly Valves

Описание

Specification:

Size: 4″- 48″( DN100-DN1200)
Temperature Range: -100 °C~550 °C(-148 °F~1022°F)
Pressure Rating: ANSI 150/300/600/900LB

Feature:

DISC INDICATION
Disc indication marked at the shaft end to clearly identify the disc opening degree at any time.DISC HARD FACE
The standard disc is built with a Stellite weld overlay or Hard chrome plated, hard face provides increased hardness and wear resistance with long service life.SEALING DESIGN
The soft sealing of graphite for laminated seat is placed on the body which reducing the possibility of graphite gets wear further leads to leakage. The graphite is positioned in the notch of the sealing seat in order to allow for easy repair.
We provides laminated seat, solid metal seat as well.

DUST PROOF DESIGN
A set of bushing design prevents the ingress of foreign material into the shaft area.

SHAFT STRENGTH UPGRADED
Shaft strength increased by splined shaft without drilling on the shaft for taper pin.

BLOW-OUT PROTECTION
Both the shaft stop and bottom cover offers reliable blowout protection.

DISC
Pin-less design provides easily maintenance work.

BI-DIRECTIONAL SHUTOFF DESIGN
The floating sealing design is self-adjustable and the sealing surfaces of an elliptical sealing system are completely in contact at the final position only. This mechanism provides flawless bubble tight shutoff.

For flanged end valve, the shaft is positioned at the flange side which reduced the possibility of external leakage caused by the ambient temperature changed.

Specifications:

VALVE DESIGN & PRESSURE/TEMPERTURE RATINGS:
-ASME B16.34
-API 609PRESSURE TESTING:
-API 598
-ISO 5208FLANGE DRILLING:
-ASME B16.5
-ASME B 16.47
-ISO 7005
-EN 1092

MOUNTING FLANGE:
-ISO 5211
-FACE TO FACE:
-API 609
-ISO 5752
-ASME B16.10

FIRE SAFE APPROVAL:
-API 607
-ISO 10497

FUGITIVE EMISSION APPROVAL:
-ANSI/ISA-SP-93
-ISO15848
-TA LUFT

CRYOGENIC:
-BS 6364

MARKING:
-MSS-SP-25
-ASME B16.34

LEAKAGE CLASS:
-ANSI FCI 70-2 Class V
-ISO 5208 RATE A

MANUFACTURING QUALITY:
-ISO 9001
-PED 2014/68/EU(Module H)
-ATEX 2014/34/EU
-SIL 3 (The valves are suitable for use in a safety instrumented system up to SIL 2 -(low demand mode).The valves may be used in a redundant architecture up to SIL 3.)

CERTIFICATION:
-API 609 Monogram
-API 607
-ISO 15848
-ISO 10497
-TR CU 010
-TR CU 032

APPLICATIONS：

Petrochemicals Industry
Fossil & Cogeneration Power
Steel Mill
Refinery
Cryogenic
Pulp & Paper
Nuclear Power
