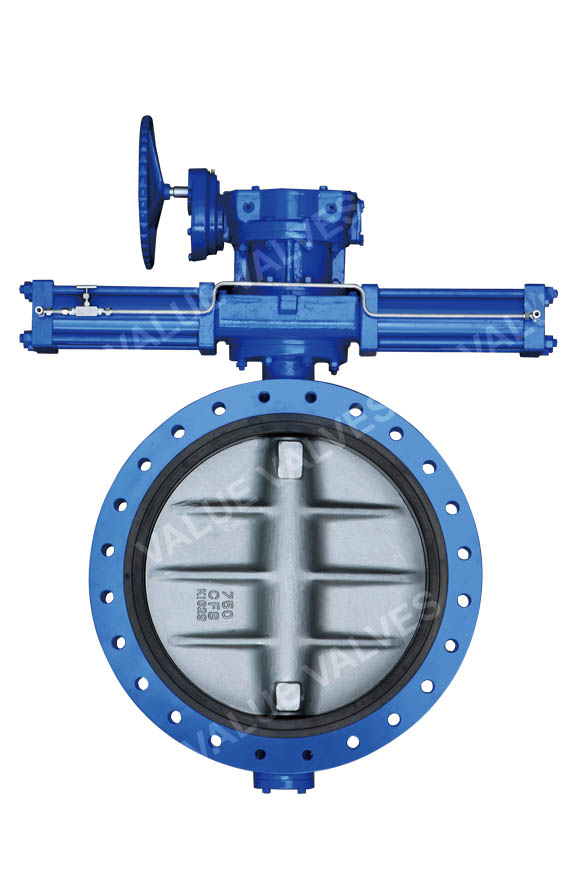

VF-265A Series Ship-Building Valves

Описание

Specification:
Size: 2”~24”(50mm~600mm)
Temperature Range: -20℃~120℃(-4℉~248℉)
Pressure Rating: 10 bar, 16bar



Feature:
1. Pin-free design (below 24”) for the connection between disc and shaft can decrease the probability of leakage by the corrosion of sea water and quickly maintain without special tools.
2. Several kinds of rubber material are available on customers’ request.
3. Bi-directional bubble-tight shut off



Specifications:
Body Style: Flange type
Body Shell thickness: ASME B 16.34, API 594
Mounting: ISO 5211
Design & Pressure:ISO 5208, ASME B16.34,
Face to Face:ISO 5752, JIS F 7480
Inspection and Testing: ISO 5208
Standard Marketing System: MSS-SP-25
ABS Certificate: ABS Steel Vessel Rules 1-1-7/7,4-6-2/5.11
(Other flange connection please contacts with Value Valves Co., Ltd.)
*Technical information is only for reference. Value Valves Co., Ltd. reserves the right to change without previous notice.



APPLICATIONS:
It is suitable for Ship building.



CERTIFICATE:
American Bureau of Shipping(ABS)
Lloyd’s Register Asia(LR)
China Crop Register of Shipping(CR)
Bureau Veritas (BV)
Det Norske Veritas (DNV)
China Classification Society (CCS)
